As featured in the September 2019 Issue of Air Gunner Magazine - Richard Nash (Maintenance Man) Article on pages 52 to 54 shows a step by step guide on cylinder maintenance.
These tools allow you to remove both ends from your original Quick Fill Weihrauch HW100, HWTuning Titanium air cylinder, front end HW110 & HW44. These are the same tools we use in our own Workshop to service HW100 cylinders.
Use the Lawrie Spanner to undo and/or re-tighten the valve end of your air cylinder (the end that screws into the block). Use the levering bar through the fill port of the gauge end of your air cylinder.

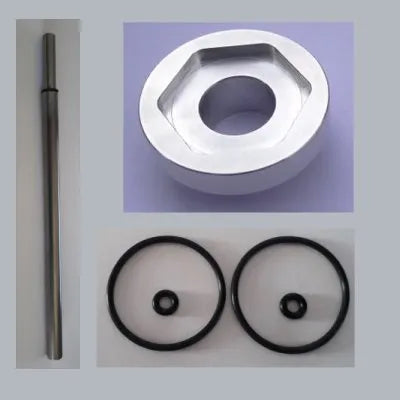

You will receive:-
1 x Lawrie Spanner© for the breech end.

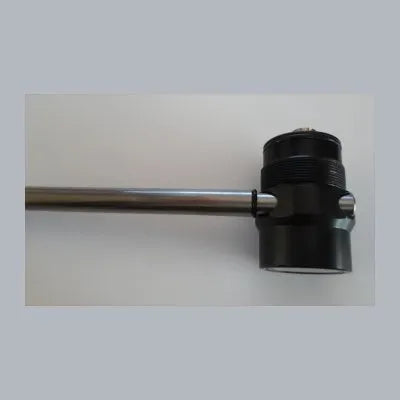

1 x Specially Designed Levering Bar for the gauge end.
1 x Cylinder Ends Sealing Kit - 2 x end cap seals & 2 x end cap valve seals (fill valve & main cylinder valve)
The Lawrie spanner is designed to apply pressure around the whole of the end, not just in one point, and is made from aluminium, NOT steel or stainless steel to reduce the risk of marking. If you use a Steel/Stainless Steel tool on the ends of your air cylinder, they may cut into your end caps and cause dents as it's too hard a material to use with any force in this area - this is why we use an aluminium tool. Some cylinder ends can be REALLY hard to get off
